| Body Type | Â Aluminium and Zinc Alloy Die Cast |
| Brand | McCoy 8M |
| Colour | White |
| Usage | Casement Door |
| Model No. | 331-McCoy CDHS-1 |

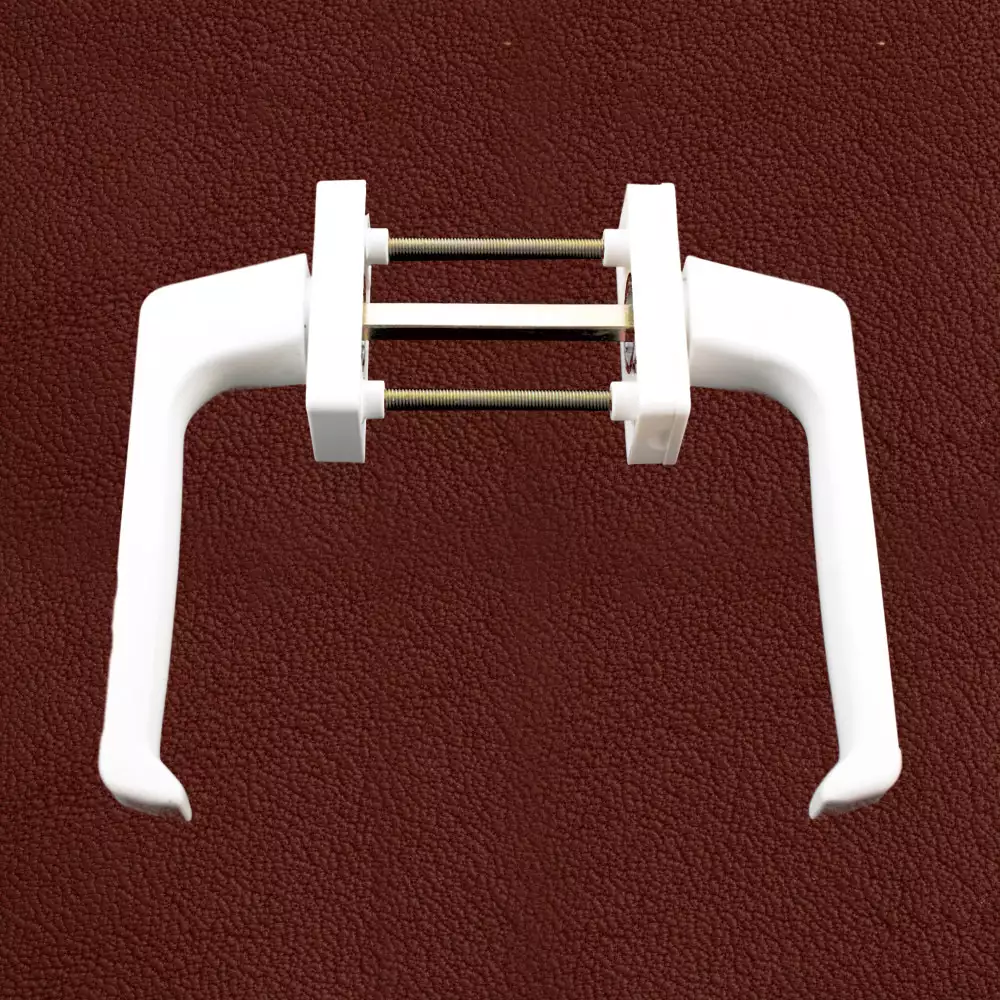

- A Multi-Point Locking Handle for Outward as well as Inward opening PVC-U Doors.
- A bold and stylishly L Type Square shaped Aluminium Zinc Alloy Die Cast Body.
- Suitable for most PVC-U profiles.
- Ergonomic design and easy to operate with lesser effort.
- Body made from the new family of Zinc-Aluminium based Die Casting Materials containing higher Aluminium than standard Zinc alloys characterized by high Strength and Hardness and good Bearing properties.

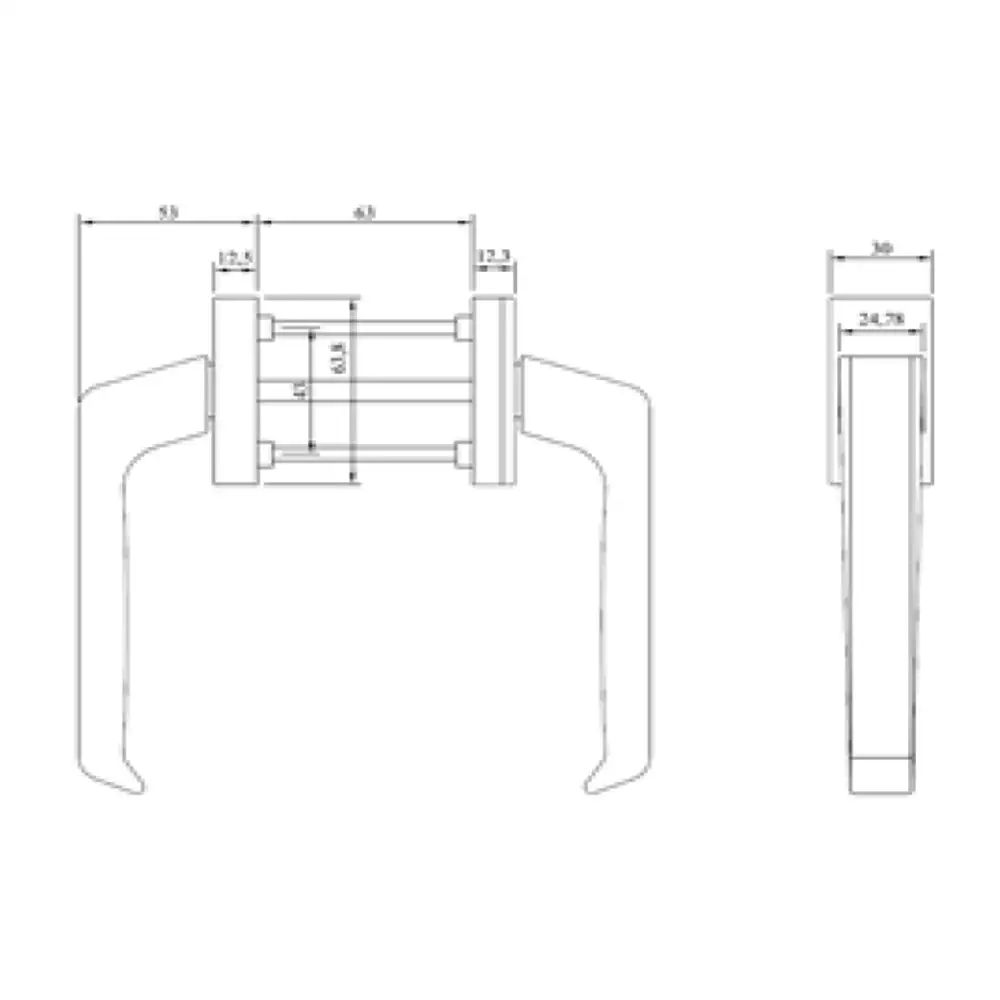

- Total height of the handle 53mm.
- Total length of the handle 169mm.
- The Base Width of the handle is 30mm.
- Spindle Cross Section is 7mm (+0.0/-0.1mm.)
- Standard package includes 2 nos. Fixing Screws M4 x 70mm. Long.
- Available in White or Black Powder Coating finish.
- Coating thickness of 90 Microns.
| Feature | Advantage | Benefit |
| Coating thickness 90ÎĽm | Colour does not fade / come off due to weather conditions or repeated gripping by hand. | Longer service life. |
| Base width 30mm. | Can be used for outward as well as Inward opening doors. | Suitable for use with most profiles. |
