| Body Type | Aluminium and Zinc Alloy Die Cast |
| Brand | McCoy 8M |
| Usage | Sliding Window |
| Model No. | 303-McCoy EH-3 |

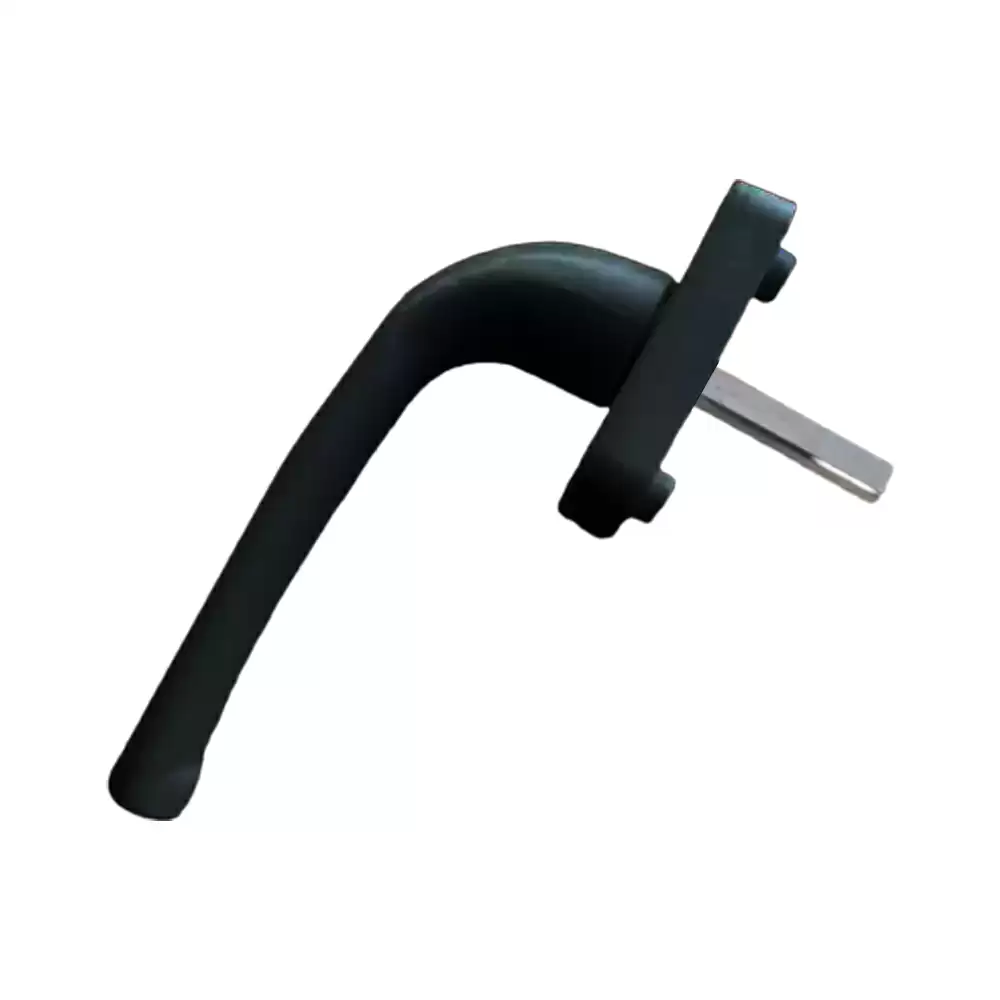

- A Multi-Point Locking Handle for Sliding PVC-U Windows. Can be used for Inward opening Casement windows also.
- A stylishly curved L Shaped Aluminium Zinc Alloy Die Cast Body.
- Suitable for most PVC-U profiles.
- Ergonomic design and easy to operate with lesser effort.
- Body made from the new family of Zinc-Aluminium based Die Casting Materials containing higher Aluminium than standard Zinc alloys characterized by high Strength and Hardness and good Bearing properties.
- Total height of the handle 60mm.
- Total length of the handle 146mm.
- The Base Width of the handle is 29mm.
- Spindle length is 35mm.
- Spindle Cross Section is 7mm. (+0.0/-0.1mm.)
- Standard package includes 2 nos. Fixing Screws M4 x 40mm. Long
- Available in White or Black Powder Coating finish. Other colours available on request.
- Coating thickness of 90 Microns.
| Feature | Advantage | Benefit |
| Spindle length 35 mm. | The spindle will reach and cross the Espag, thus giving a proper grip to operate. | Suitable for most Profile – Espag combinations. No slippage while operating inside the Espag hole, so longer service life. |
| Coating thickness 90 μm | Colour does not fade / come off due to weather conditions or repeated gripping by hand. | Longer service life. |
| Base width 29 mm. | Can be used for inward opening as well as sliding windows. | Suitable for use with most profiles. |
