| Body Type | Aluminium and Zinc Alloy Die Cast |
| Brand | McCoy 8M |
| Colour | White |
| Usage | Sliding Door |
| Model No. | 330-McCoy EHK-1 (White) |

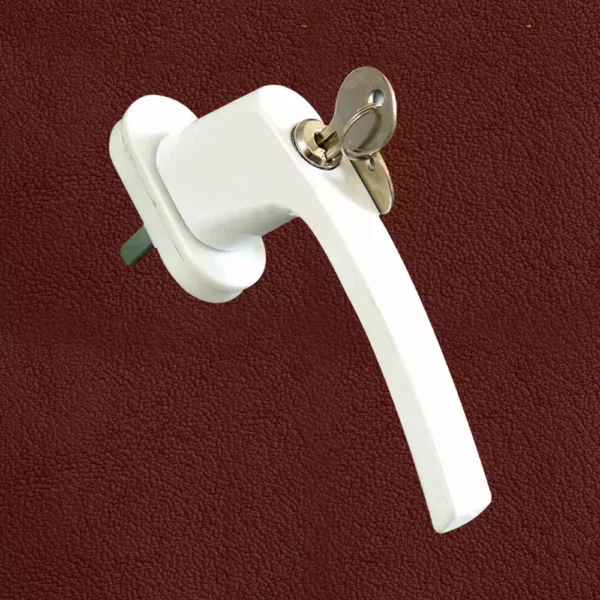

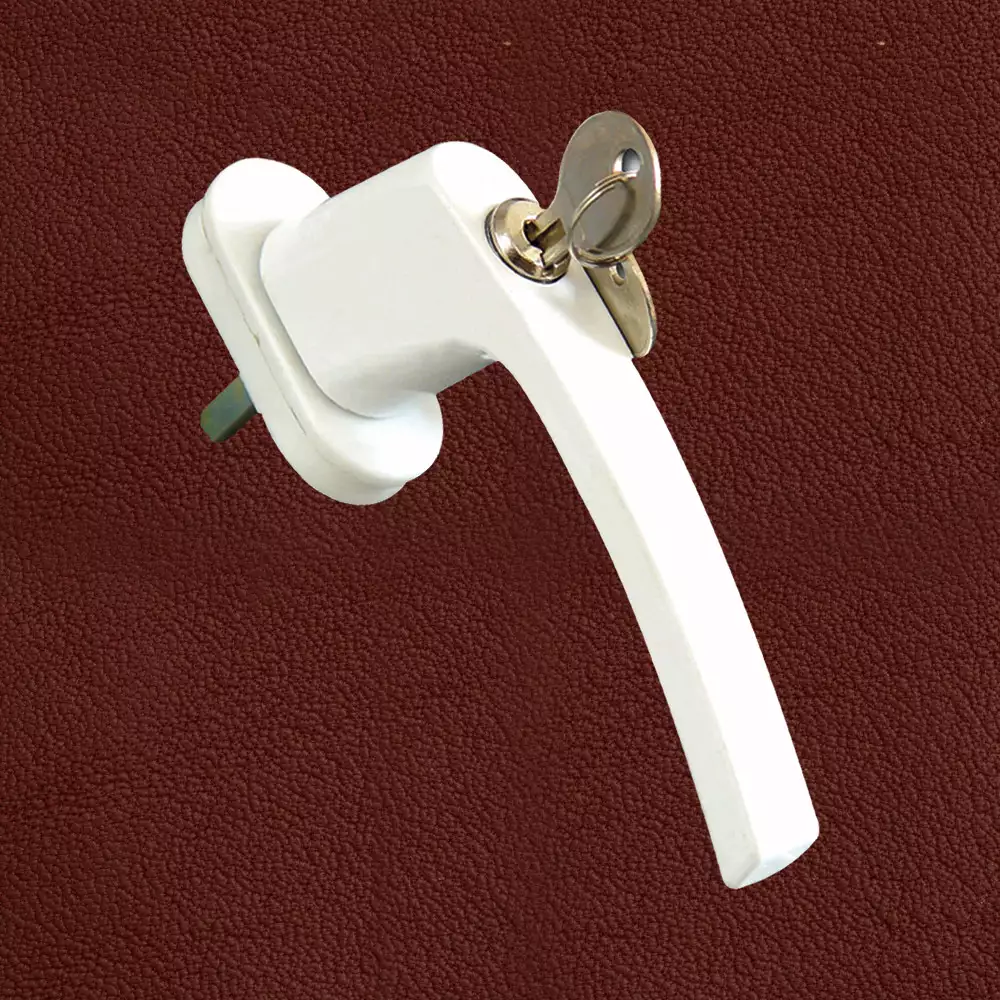

- A Multi-Point Locking Handle for Sliding PVC-U Doors and Windows McCoy EHK-1.
- Can be used for Inward opening windows also.
- A stylishly curved L Shaped Aluminium Zinc Alloy Die Cast Body.
- Suitable for most PVC-U profiles.
- Ergonomic design and easy to operate with lesser effort.
- Total height of the handle is 57 mm.
- Total length of the operating lever of the handle is 130 mm.
- The Base Width of the handle is 28 mm.
- Spindle length is 30-35 mm.
- Spindle Cross Section is 7mm (+0.0/-0.1mm.)
- Available in White or Black Powder Coating finish.
- Coating thickness of 90 Microns.
| Feature | Advantage | Benefit |
| Spindle length 35 mm. | The spindle will reach and cross the Espag, thus giving a proper grip to operate. | Suitable for most Profile – Espag combinations. No slippage while operating inside the Espag hole, so longer service life. |
| Coating thickness 90 μm | Colour does not fade / come off due to weather conditions or repeated gripping by hand. | Longer service life. |
| Base width 28 mm. | Can be used for outward opening windows when there is constrained space on sash for mounting the handle. | Suitable for use with most profiles. |
