| Body Type | Aluminium and Zinc Alloy Die Cast |
| Brand | McCoy 8M |
| Usage | Aluminium Casement Windows |

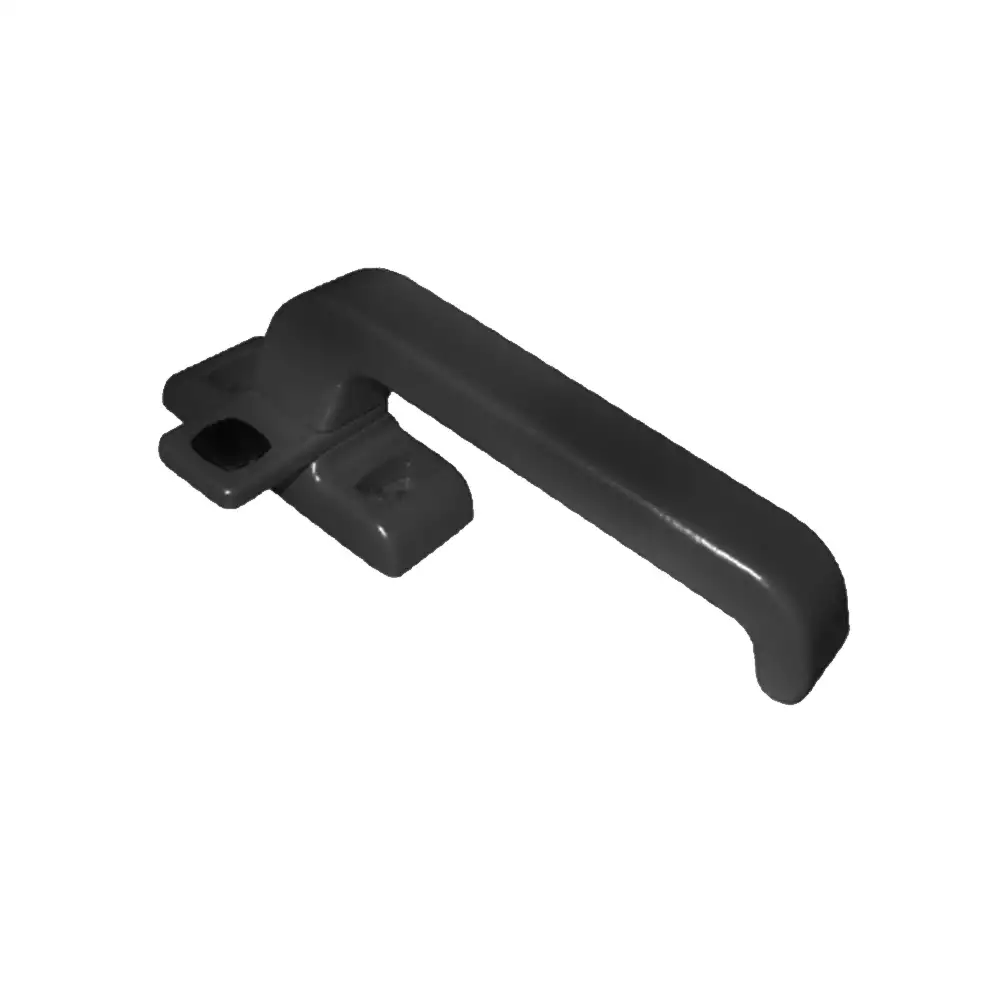

- A single point Locking Handle for Outward and Inward opening Aluminium Casement Windows.
- Body made from the new family of Zinc-Aluminium based Die Casting Materials containing higher Aluminium than standard Zinc alloys characterized by high Strength and Hardness and good Bearing properties.
- An aesthetically pleasing square shaped Zinc Alloy Die Cast Body.
- Inward curling end of the Handle lever gives for easy gripping and ease of use with less effort.
- Available in White or Black Powder Coating finish.

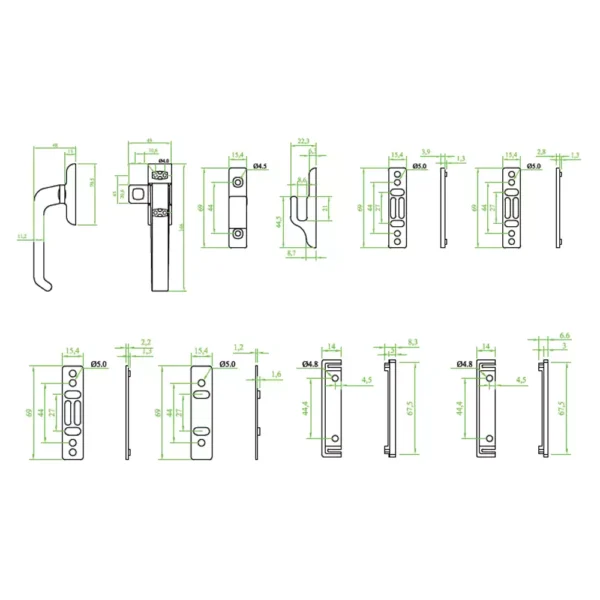

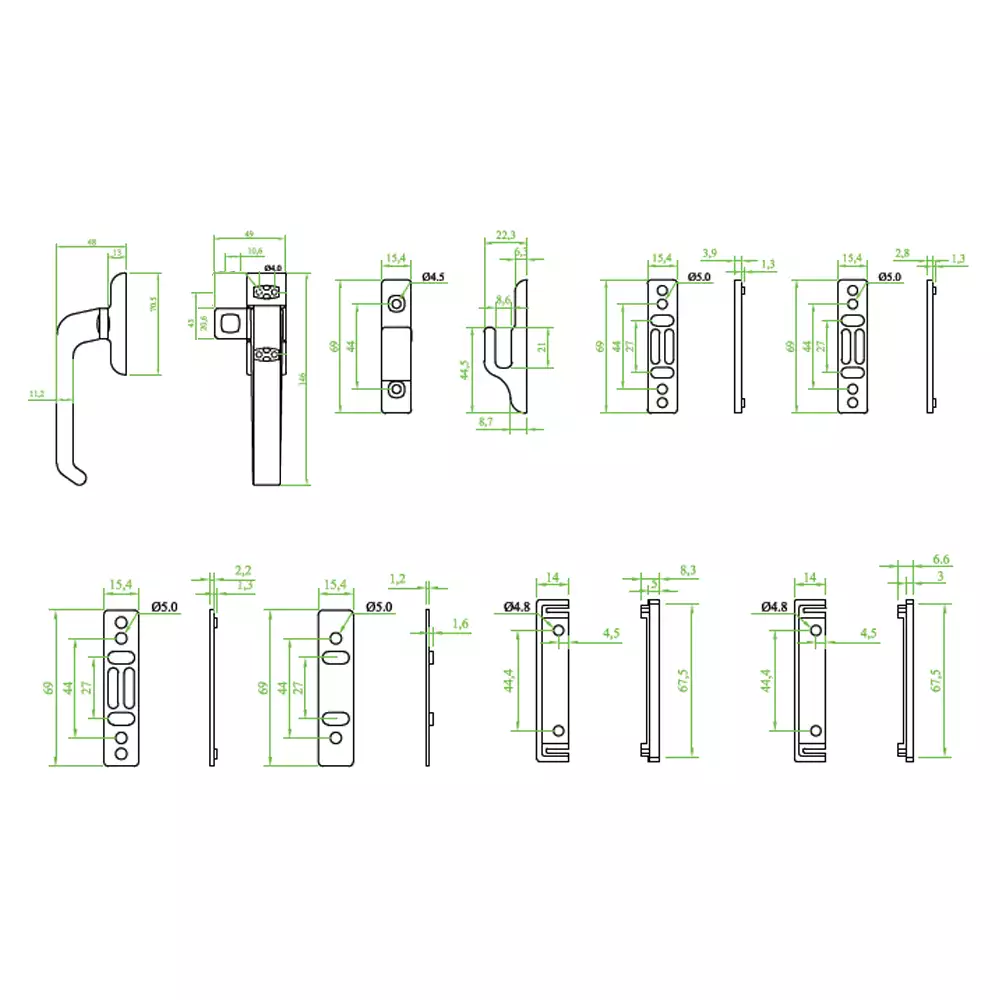

- Sleekly designed square base with a width of 27 mm.
- The Length Handle is 146 mm.
- Total Height of Handle is 48 mm.
- Coating thickness of 90 Microns.
- Hook, Hook Packers, Handle Packers come as part of the standard packing.
- Hook Packers of thicknesses 1mm., 2mm., 3mm. and 4mm. are available with each packing.
- Handle Packers of varying thicknesses available in standard packing.
| Feature | Advantage | Benefit |
| Ergonomic Design with Inward curling end of the Handle lever | Less effort needed to operate | Easy to use for the user. |
| Coating Thickness of 90ÎĽm. | Good resistance to Corrosion. | Can be used in adverse weather conditions also. |
| Zinc – Aluminium based Die Cast body | Higher Strength and Hardness and Better Bearing properties. | Longer Service Life and less Wear and tear. |
| Hook Packers and Handle Packers of different thicknesses come with the standard packing. | A large range of Frame-Sash depth differences are covered. | Can be used with many different profiles. |
