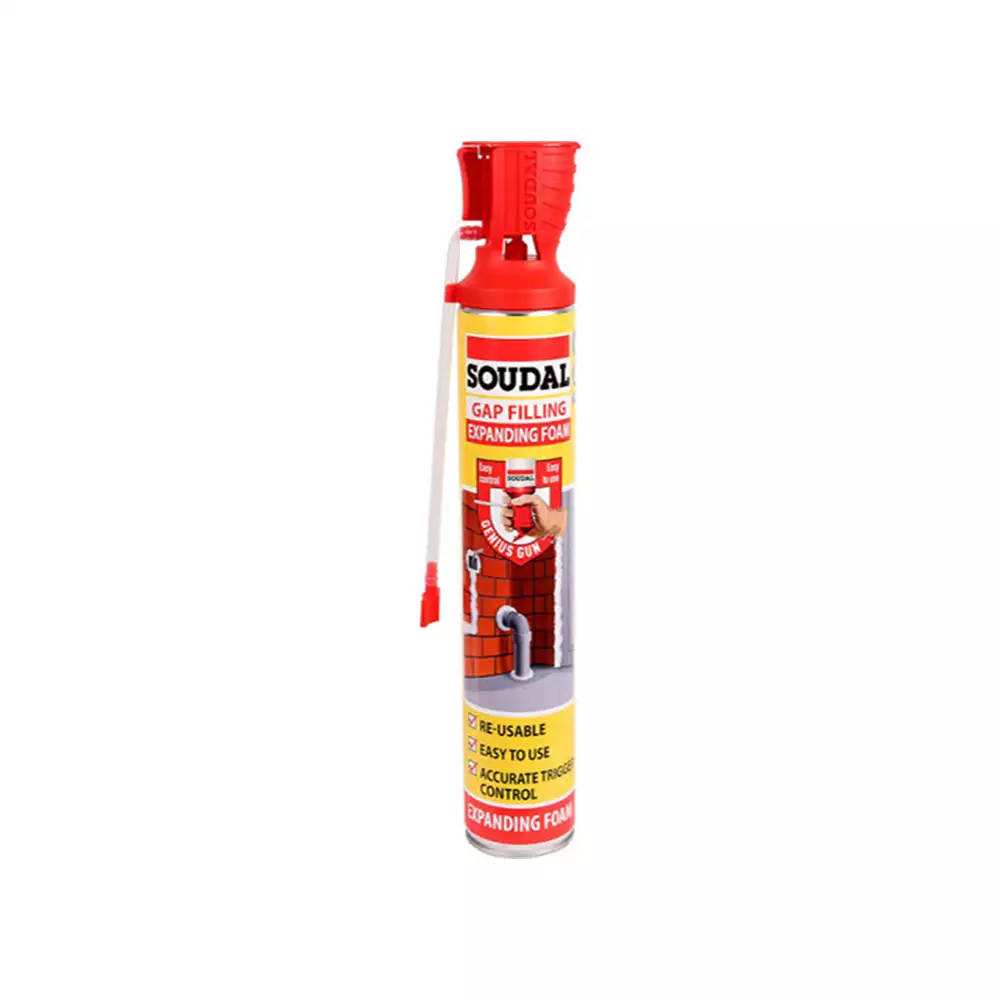

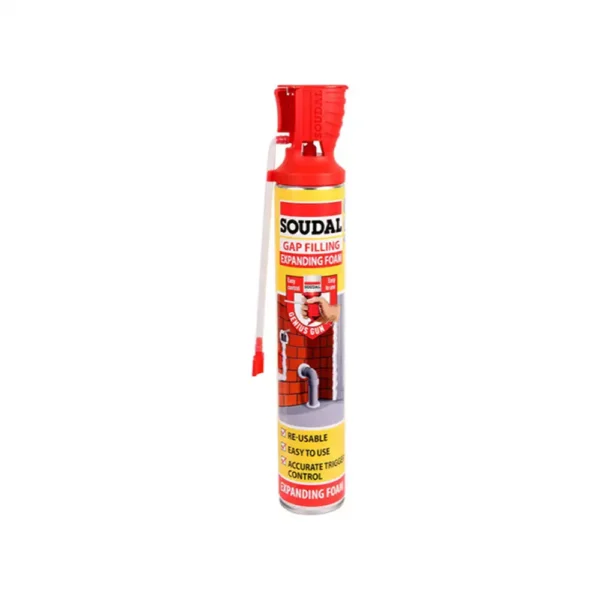

McCoy Soudal Genius Gun Gap Filling Expandable PU Foam (600ml)

Genius Gun Fill & Insulate PU Foam is a ready to use single component self expanding Polyurethane Foam. Due to the the patented Genius Gun system the application of PU Foam becomes very easy and precise.

Key Features:

• Excellent form stability – no shrink, no post expansion.
• Excellent filling characteristics.
• Excellent adhesion to all building materials.
• High insulation values, both thermal and acoustical.
• Excellent installation performance.

Application:

• Installation of door and window frames.
• Filling of cavities.
• Sealing and filling of openings and cavities in roof constructions.
• Creation of an acoustic screen.
• Creation of a sound deadening layer.
• Improvement of insulation in cold store facilities.
• All other usual PU Foam applications.

Technical Details:

• Base : Polyurethane
• Consistency : Stable Foam (does not sag)
• Curing System : Moisture Cure
• Skin Formation (20°C at 60% R.H.) : Ca 10 min.
• Drying time : Ca 90min – 30mm foam bead (20°C/65% R.H.)
• Foam Yield ( FEICA OCF TM 1003 ) : 600 ml yields 20 l cured foam
• Shrink : None
• Postexpansion : None
• Cellular Structure : Ca 70-80% closed cells\
• Specific Gravity : Ca. 26kg/m³ (extruded, fully cured)
• Temperature Resistance : -40°C until +90°C when cured Short term (up to 1 hour) 120°C
• Kleur : Champagne
• Fire Class : B3 (DIN4102 part2)
• Water Absorption : 1% Vol. (DIN53422)
• Insulation Factor : 33mW/meter Kelvin (DIN 52612)
• Pressure Strength (DIN 53421) : Ca. 3 N/cm²
• Bowing Strength (DIN 53423) : Ca. 7 N/cm²
• Shear Strength (DIN 53427) : Ca. 17 N/cm²

Shelf Life And Storage: 12 months in unopened packaging in a cool and dry storage place at temperatures between +5°C and +25°.
