| Body Type | Zamac |
| Brand | McCoy 8M |
| Usage | Casement Window |

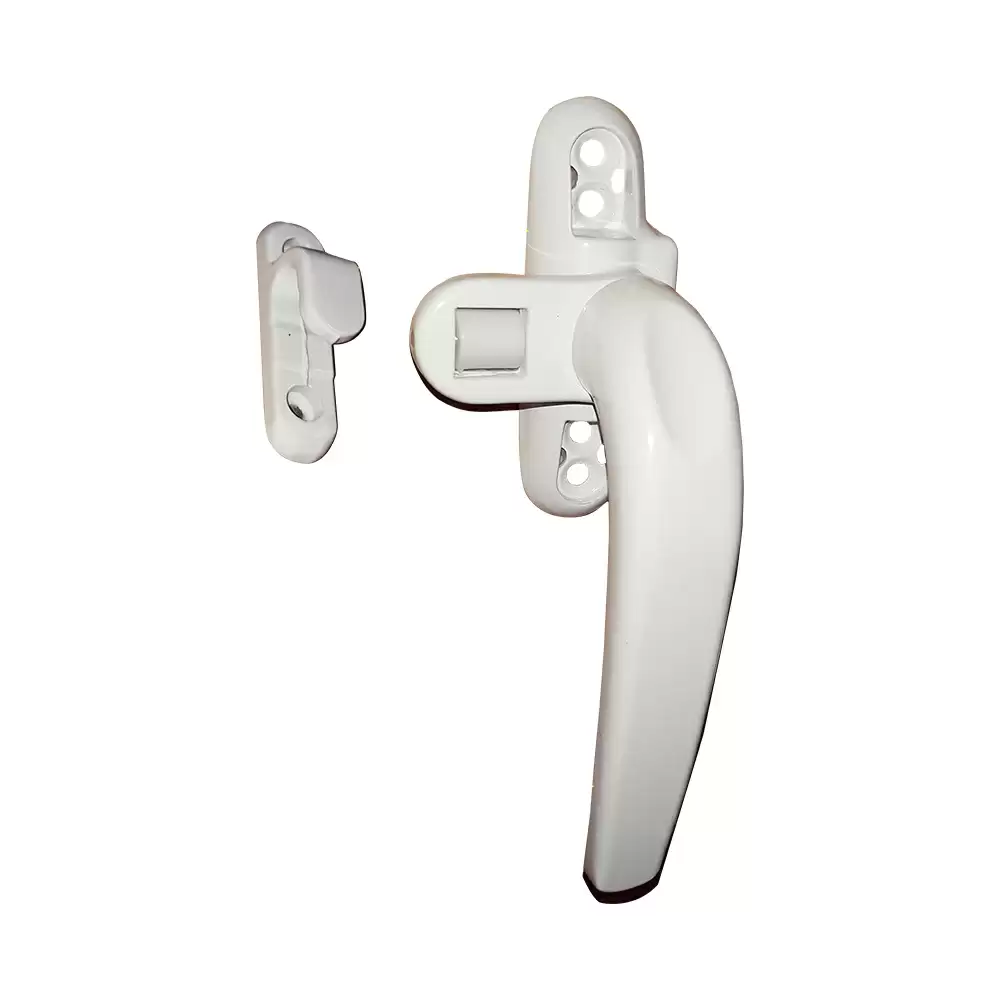

- A single point Locking Handle for Outward and Inward opening Aluminium Casement Windows.
- Body made from ZAMAK, which is an alloy of Zinc, Aluminium, Magnesium and Copper, Zinc being the Base Metal. It is characterized by high Strength and Hardness and good Bearing properties.
- An aesthetically pleasing curved ZAMAK Body with a Thumb depression for enhanced looks and ergonomics.
- Inward curling of the Handle lever gives for easy gripping and ease of use with less effort.

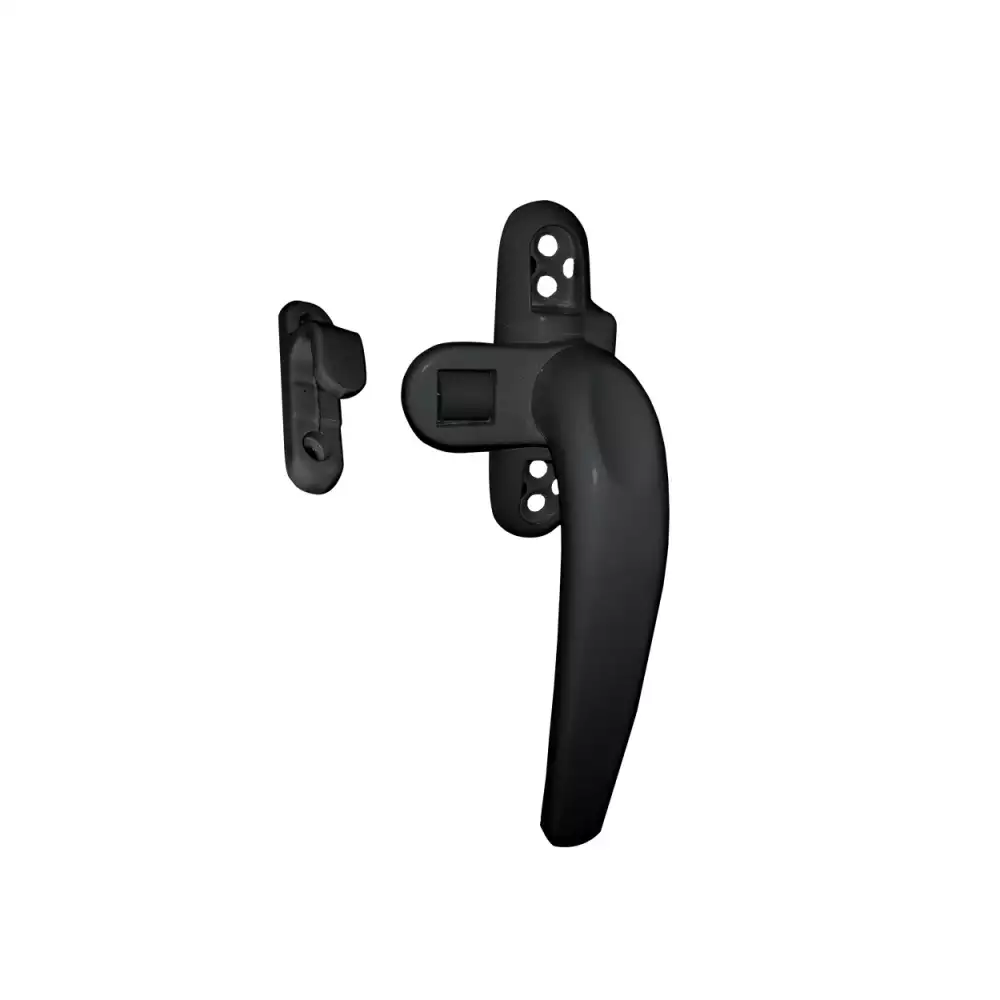

- Available in White or Black Powder Coating finish.
- Sleekly designed oval base with a width of 22 mm.
- The Length Handle Lever is 117 mm.
- Total Height of Handle is 51 mm.
- Coating thickness of 90 Microns.
- Hook, Hook Packers, Handle Packers, Screw Caps for Handle and Hook, respectively, and 6 numbers Fixing Screws come as part of the standard packing.
- Hook Packers of thicknesses 1mm., 2mm., 3mm. and 4mm. are available with each packing.
- Handle Packers of varying thicknesses available in standard packing.
| Feature | Advantage | Benefit |
| Ergonomic Design with Inward curling end of the Handle lever | Less effort needed to operate even with multiple locking points | Easy to use for the user. |
| Coating Thickness of 90ÎĽm. | Good resistance to Corrosion. | Can be used in adverse weather conditions also. |
| ZAMAK body | Higher Strength and Hardness and Better Bearing properties. | Longer Service Life and less Wear and tear. |
| Hook Packers and Handle Packers of different thicknesses come with the standard packing. | A large range of Frame-Sash depth differences are covered. | Can be used with many different profiles. |
