| Body Type | Zinc and Aluminium Alloy Die Cast |
| Brand | McCoy 8M |
| Colour | White |
| Usage | uPVC Casement Door |
| Weight Capacity | Max. 80 kg. / 3 Hinges. |
| Model No. | 324-McCoy DH-1Eco (White) |

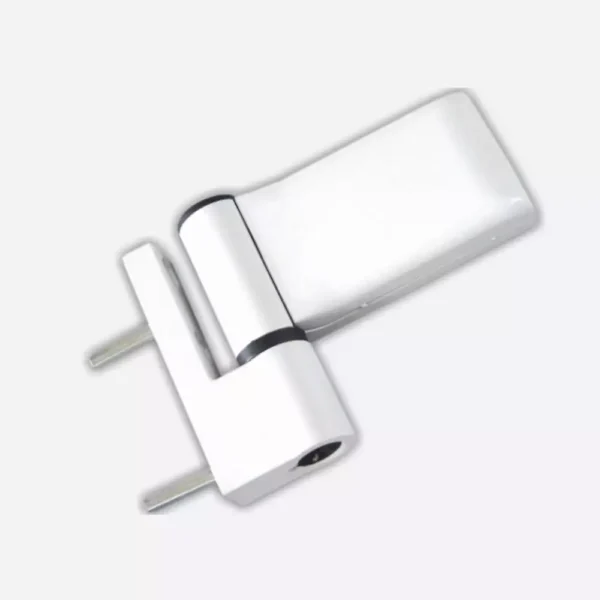

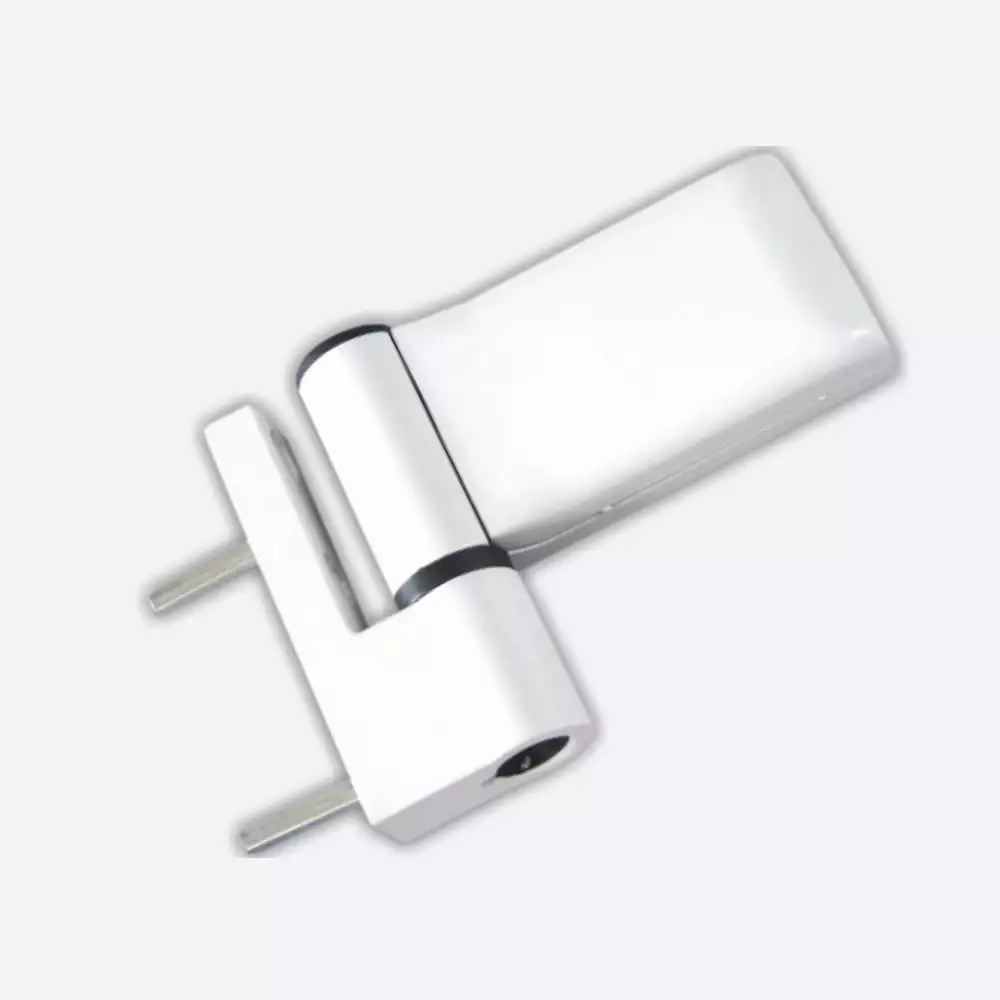

- 3D hinge for Casement Doors with square shaped Zinc alloy body and SS Axle.
- Load carrying capacity of 80 kg. per 3 Hinges.
- The Coating Thickness is 250 ÎĽm.
- Hinge can be adjusted Horizontally as well as Vertically.
- The difference of depths of surface between Sash and Frame is 18mm.
- Additional Frame packers are available for depth difference compensation between Frame and Sash of thicknesses 1mm. totally 2 nos.
- Fixing Screws 6 nos. of size M5x50mm. long are also part of the standard supply.
| Feature | Advantage | Benefit |
| Zinc alloy body with 250ÎĽm of Coating thickness and SS Axis Spindle. | Very good resistance to corrosion. | Long service life even under adverse environmental conditions. |
| Sash to Frame surface depth difference adjustment of up to 1mm. | Suitable for use with a wide range of profiles. | Universality of usage. |
